Pulse Heat TV Bonding Machine 610SH Single head cof bonding machine LCD panel opencell Repairing equipment
Basic Info.
Product Description
Features:
- Capable of repairing any screen size below 100 inches.

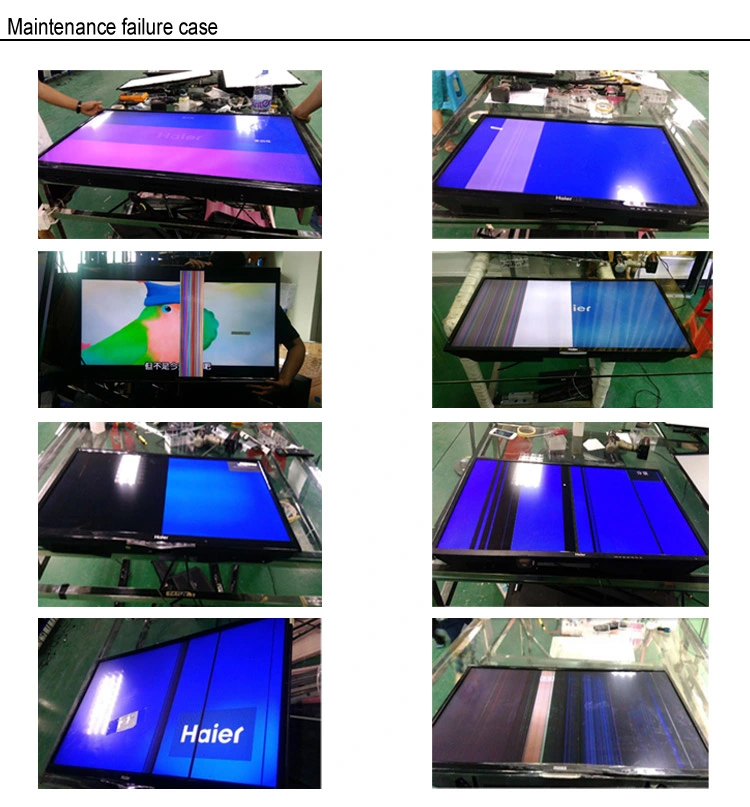

- Refurbishes various screen elements such as black belt, color line, ribbons, and more, caused by FPC/TAB/COF.
- Pulse heating precision of +/-0.3ºC.
- Rapid response time from room temperature to 180 degrees in just 2 seconds.
- High plane precision on the hot-pressing side: 0.015 mm.
- Low repair rate and user-friendly operation.
| Model number | 610SH |
| Heating Mode | Pulse |
| PID Temperature Control System Brand | Siemens temperature control module |
| Temperature curve:Factory Reset | |
| Peak temperature + / – 0.3 degrees Celsius | |
| From room temperature to 180 degrees response time for 2 seconds | |
| Brand:the United State OMEAG | |
| Heat Press Head | Materials: titanium alloy |
| Place of origin: the United States | |
| Plane precision (hot-pressing side) : 0.005 mm | |
| Industrial Control Unit | PLCS:DELTA |
| HDMI:Weinview | |
| Imaging Unit | COF counterpoint: under counterpoint (optical path: lens>quartz>ITO electrode COF package) |
| PCB counterpoint: no | |
| Microscope magnification: 20 ~ 100 consecutive times | |
| Number of lens: 2 | |
| COF counterpoint display: 19 inch | |
| PCB counterpoint display:no | |
| Light above:yes | |
| Light down:no | |
| COF Trimming Unit | Place of origin: Taiwan |
| Type of guide rail:V guide rail | |
| Accuracy: 0.01 | |
| Adjustable direction: X/Y/R | |
| X-y range: + / – 6.5mm | |
| R range:coarse adjustment 360 degrees, fine adjustment + / – 5 degrees | |
| COF Fixture | Mechanical clamping fixture way,Z to tilt radius can be adjusted/ Adjustable horizontal angel/COF can be extended |
| Lens Fine-Tuning Unit | Type of guide rail: precise cross rail . Control mode: X – Y – Z micrometer control |
| Position Detection | NO |
| Silicone Skin/Tefloon | Change position manually |
| LCD Drive (Platform) | Sliding or fixed optional manually |
| Alarm | Abnormal:temperature/thermocouple anomaly/actions |
| Heat Seal Head Counterpoint | Independent pneumatic,Pressure reducing valve be adjusted manually |
| Control Way | Touch screen + button operation |
| Parameter Setting | According to the need to set to storage more groups of hot-pressing parameters |
| Voltage | AC220 v |
| Peak Power | 1200W |
| Weight | 350kg |
| Size Of Machine (mm) | 1200(L)X1200(W)X1520(H)mm |
Product: LCD TV Repair Bonding Machine
Payment and Delivery: Payment terms include EXW/FOB/CIF, with options for T/T payment of 100% deposit in advance or 50% deposit and 50% before delivery. Delivery time is approximately one week.
Warranty: We offer a standard 1-year warranty and lifetime technical support.
Training: Choose between factory training or video training. For more details, visit our Training page.
Packaging: Our machines are carefully packaged for safe shipping.
Installation: Refer to our video guide on the disassembly procedure for easy installation upon receipt of the machine.
610SH Specification
Single Head Manual platform Automatic Pressure Machine
Equipment Details:
- Equipment Model Number: 610SH (Single Head)
- Device Description: Repair screen machine / Bonding machine
- Device Uses: FPC, COF, TAB, LCD Panel, and PCB combination bonding
- Applicable LCD panel specifications: 7″-60″
- Applicable LCD panel thickness: 0.3MM-1.1MM (Single glass)
- Bonding IC number: Multiple / Panel Can be set
- Bind direction: X or Y Unidirection
- Bonding IC size: Replaceable blade according to IC specifications
Equipment Features:
- Device processing time: TFT, 3.8S/chip
- Production Beats: TAB, 100 pcs/H
- Bonding Accuracy: Within ± 15μm (support 4K screen)
- Highest positioning accuracy setting: ±0.5μm
- Equipment requirements for the work environment: Clean, No dust, Clean room
Additional Information:
- Power Supply: AC 220V±10%, 50HZ, 1200W
- Heating Type: Pulse (rapid heating / cooling and auxiliary cooling function)
- PID Temperature Control System: Brand: DELTA
With COF bonding machines, we provide the accessories below for free.
They are almost all the accessories needed by ACF/COF/TAB repairing, means no need buy other extra accessories.
cof tv repair accessories
1,COF Bonding Machine 1Set
2,ACF Anisotropic Conductive Film:AC-7206U-18 1Piece 1.2X50M Glass special
3,ACF Anisotropic Conductive Film:AC-2056R-35 1Piece 2.0X50M PCB special
4,Acetone Liquid:BT-H1,1Bottle 500ML
5,Absolute Alcohol CH3CH2OH 2Bottle 500ML
6,ACF Removing Liquid G-450 1Bottle 500ML
7,Hitachi Blue Glue 1Bottle 100ML
8,Fuji Silicone 1Piece 50M
9,Tefloon 1Piece 50M
10,Heating Solder Iron 1Piece 30W
11,Alcohol Bottle 2Bottle
12,TAB Cutter 1Piece
13,Optical Microscope 1Piece
14,LCD Test Board HXV59 1Piece
15,Air Compressor OTS550 1Piece Mute Oil-free
16,Cleanroom Wipers 1Piece
17,Cotton Swab 1Piece
18,Handheld Magnifier 1Piece
19,Precision Tweezers Elbow, Straight 2Piece High Hardness Hyperfine
