Product Name: TV Film Polarizer Film Laminating Machine

Keywords:

• Laminating Machine
• LCD Panel Repair
• LCD Screen Production
• LCD TV Maintenance

Place the cleaned panel on the platform, manually position and fix the polarizer and panel by measuring the edge distance. Next, manually separate the centrifugal protective film of the polarizer and place it in the material collection device. Press the start button to bond the glass substrate through the cylinder descending roller. The lead screw pushes the roller to accurately and quickly stick the polarizer on the corresponding LCD substrate.

Equipment Overview:

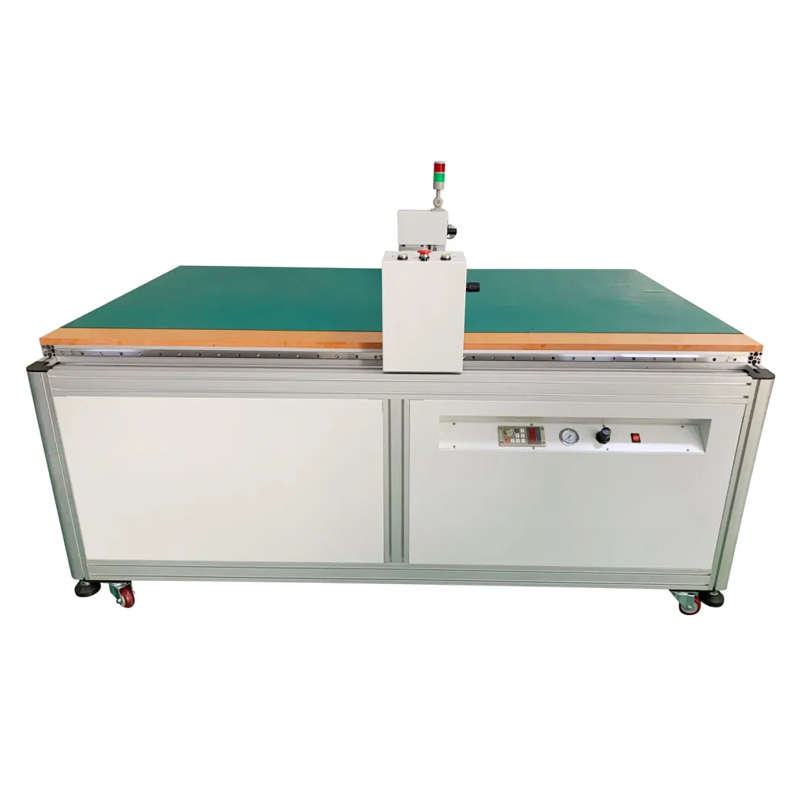

This product, the 65TM Polarizer Film Pasting Machine, is designed for the precise alignment and bonding of polarizer film onto liquid crystal glass substrates. It is ideal for medium to large LCD screen production and maintenance, including LCD TVs, advertising displays, and more.

Key Features:

• Unique structure design for panels up to 65 inches
• Synchronous lamination of hard and soft plates with tear film
• Innovative polarization absorption for firm and flat adhesion
• Super-long rubber roller design for anti-static and deformation-free operation
• Japanese control system with high-precision components
• Smooth, bubble-free bonding process

Specifications:

• Input Power: AC220V 50-60HZ (110V input customizable)
• Power Rating: 1.1KW
• Working Air Pressure: 0.4-0.8mpa
• Product Size: Up to 65 inches (customizable)
• Pressure Setting: 0.01-0.8mpa
• Operator Mode: Frequency converter self-control
• Fuselage Main Material: High-strength electrophoretic aluminum

Equipment Package:

Delivered in a sturdy glued wood package for safe transportation.

Dimensions:

• Outline Dimension: 2000x1240x1300mm (LxWxH)
• Package Size: 2150x1340x1530mm (LxWxH)
